AbCap G 4FF
rProtein G Beads 4FF is an affinity chromatography medium designed for the purification of monoclonal antibody,polyclonal antibody and Fc tag fusion protein. The recombinant protein G ligand is coupled to highly cross-linked 4% agarose beads. The characteristics of rProtein G Beads 4FF are summarized in Table 1.
Protein G, a bacterial cell wall protein isolated from group G Streptococci, binds to mammalian IgGs mainly through Fc regions. Native protein G has 3 IgG binding domains and also site for albumin and cell-surface binding. The recombinant protein G have been eliminated the nonspecific binding site. Although protein G has very similar tertiary structures to protein A, their amino acid compositions differ significantly, resulting in different binding characteristics. Protein G can be used for purification of mammalian monoclonal and polyclonal IgGs that do not bind well to protein A. Protein G has better affinity than protein A for most mammalian IgGs, especially for certain subclasses including human IgG3, mouse IgG1 and rat IgG2a.

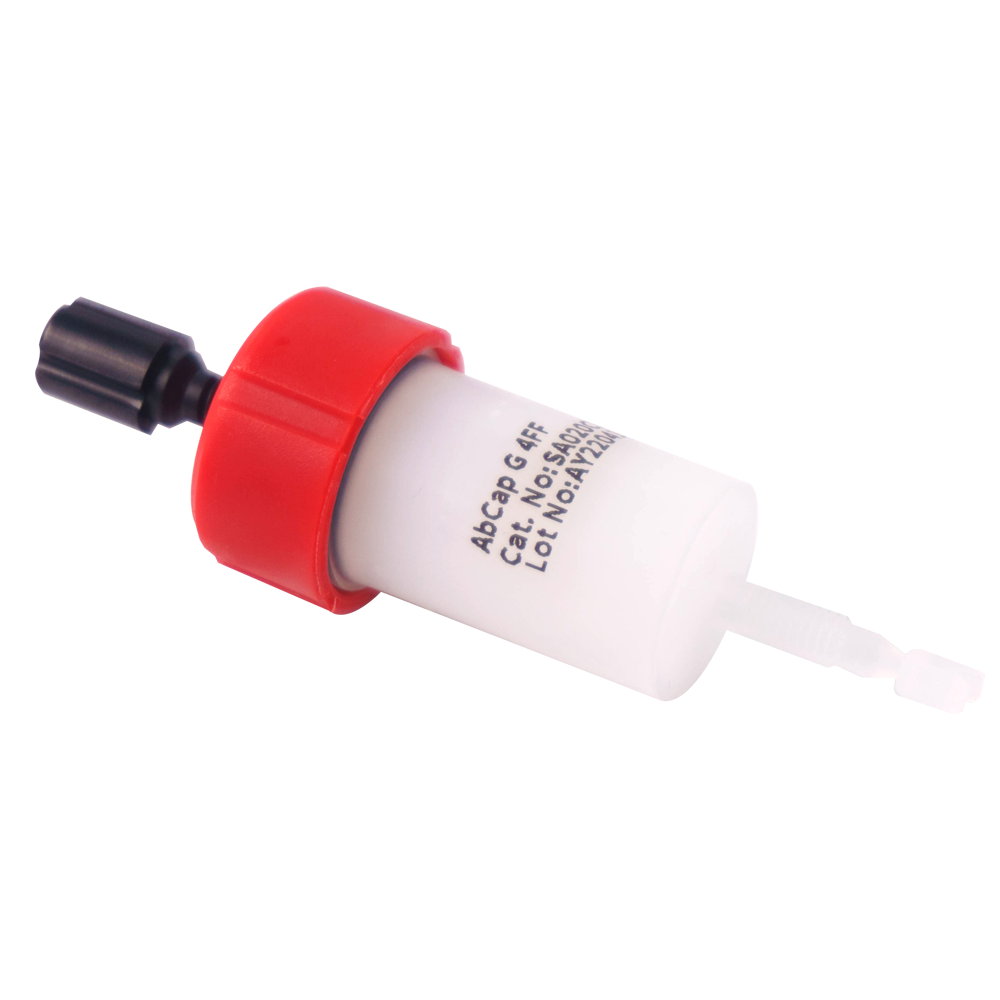

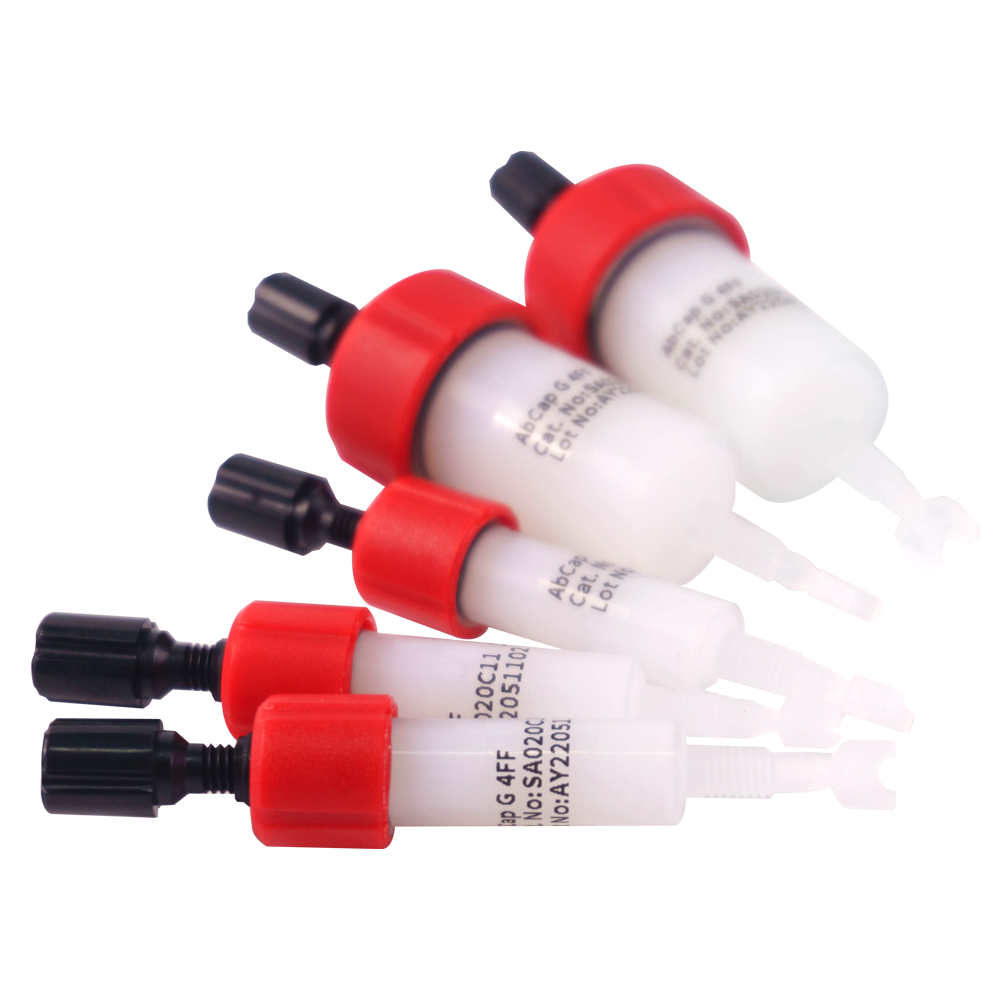

AbCap G 4FF is a prepacked ready to use ,column for purification of monoclonal and polyclonal antibodies. AbCap G 4FF 1ml and 5ml columns are packed with 1ml and 5ml of rprotein G beads 4FF. AbCap G 4FF can be adapted to all kinds of chromatography system, such as ÄKTA. It is easy to operate.
Protein G, a bacterial cell wall protein isolated from group G Streptococci, binds to mammalian IgGs mainly through Fc regions. Native protein G has 3 IgG binding domains and also site for albumin and cell-surface binding. The recombinant protein G have been eliminated the nonspecific binding site. Although protein G has very similar tertiary structures to protein A, their amino acid compositions differ significantly, resulting in different binding characteristics. Protein G can be used for purification of mammalian monoclonal and polyclonal IgGs that do not bind well to protein A. Protein G has better affinity than protein A for most mammalian IgGs, especially for certain subclasses including human IgG3, mouse IgG1 and rat IgG2a.
AbCap G 4FF is a prepacked ready to use ,column for purification of monoclonal and polyclonal antibodies. AbCap G 4FF 1ml and 5ml columns are packed with 1ml and 5ml of rprotein G beads 4FF. AbCap G 4FF can be adapted to all kinds of chromatography system, such as ÄKTA. It is easy to operate.
· Product Description
Table 1. Characteristics of rProtein G Beads 4FF
| Item | Description |
|---|---|
| Matrix Spherical | Highly cross-linked 4% agarose beads |
| Ligand | recombinant protein G |
| Static Binding Capacity | >30mg Goat IgG/ml medium |
| Particle size | 45-165um |
| Maximum Pressure | 0.3MPa, 3bar |
| pH | 3-10 |
| Storage Solution | 1×PBS containing 20% ethanol |
| Storage Temperature | 2℃-8℃ |
Table 2. Relative binding strengths of antibodies from various species to protein G and protein A as measured in a competitive ELISA test.
| Species | Subclass | Protein A binding | Protein G binding |
|---|---|---|---|
| Human | IgA | varible | — |
| IgD | — | — | |
| IgE | — | — | |
| IgG1 | ++++ | ++++ | |
| IgG2 | ++++ | ++++ | |
| IgG3 | — | ++++ | |
| IgG4 | ++++ | ++++ | |
| IgGM | varible | — | |
| Avian egg yolk | IgY | — | — |
| Cow | ++ | ++++ | |
| Dog | ++ | + | |
| Goat | — | ++ | |
| Guinea pig | IgG1 | ++++ | ++ |
| IgG2 | ++++ | ++ | |
| Hamster | + | ++ | |
| Horse | ++ | ++++ | |
| Koala | — | + | |
| Llama | — | + | |
| Monkey(rhesus) | ++++ | ++++ | |
| Mouse | IgG1 | + | ++++ |
| IgG2a | ++++ | ++++ | |
| IgG2b | +++ | +++ | |
| IgG3 | ++ | +++ | |
| IgM | variable | — | |
| Pig | +++ | +++ | |
| Rabbit | no distinction | ++++ | +++ |
| Rat | IgG1 | — | + |
| IgG2a | — | ++++ | |
| IgG2b | — | ++ | |
| IgG3 | + | ++ | |
| Sheep | +/- | ++ |
++++=strong binding; ++= medium binding; —=weak binding or no binding
| Problem | Possible Cause | Solution |
|---|---|---|
| The flow rate of the column is very low. | The sieve plate is blocked. | Clean or replace the filter. |
| Column is clogged. | Cleaning in place(part 3). | |
| Filtering the sample solution by passing them through a 0.22μm or 0.45μm filter. | ||
| The curve is not stable during sample purification | Tiny air bubbles from buffer or sample. | De-gas buffers and samples. Do not allow the column to dry. |
| No antibody in the elute. | The antibody can not be eluted. | Reduce the pH of the elution buffer. |
| The antibody is unstable at low pH. | Neutralize the eluted fractions with Neutralization Buffer immediately after elution. | |
| The IgG subclass does not bind to protein G. | Try other affinity chromatography media to purify the antibody, such as rProtein A Beads , rProtein A/G Beads or PabPur Sufolink Beads (the specific antigen can be immobilized to the beads). | |
| The recovery rate gradually decreases. | The sample is overloaded. | Reduce the loading volume. |
| The reduced performance of the medium. | Cleaning in place(part 3). |
· Ordering Information
| Product | Cat. No. | Size |
|---|---|---|
| rProtein G Beads | SA016005 | 5 ml |
| SA016025 | 25 ml | |
| SA016100 | 100 ml | |
| SA016500 | 500 ml | |
| SA01601L | 1 L | |
| SA01610L | 10 L | |
| AbPur rProtein G Kit | SA016K03 | 3T |
| rProtein G Beads 4FF | SA020005 | 5 ml |
| SA020025 | 25 ml | |
| SA020100 | 100 ml | |
| SA020500 | 500 ml | |
| SA02001L | 1 L | |
| SA02010L | 10 L | |
| AbCap G 4FF | SA020C11 | 1 X 1 ml |
| SA020C51 | 5 X 1 ml | |
| SA020C15 | 1 X 5 ml | |
| SA020C55 | 5 X 5 ml | |
| SA020CS | 3X1 ml+1X5 ml |
· Download Manual
