Capture-Purification

Compared to traditional resin, Magnetic Beads eliminate the need for complex procedures such as column packing. The process is straightforward and offers high purification efficiency, enabling small-scale, high-throughput purification.

· Application Cases

rProtein G or rProtein A ligands are densely and oriented immobilized onto magnetic microspheres, enabling antibody purification via Fc-mediated IgG binding. Compared to native proteins, our recombinant ligands feature high-affinity binding sites, thereby minimizing non-specific adsorption.

1. High binding capacity

Under identical conditions, antibodies were purified using resin and magarose beads, respectively. As indicated by the yield(Figure 1.1) and purity(Figure 1.2) of the purified products, the capture and binding capacity of the magnetic beads is highly comparable to that of the resin.

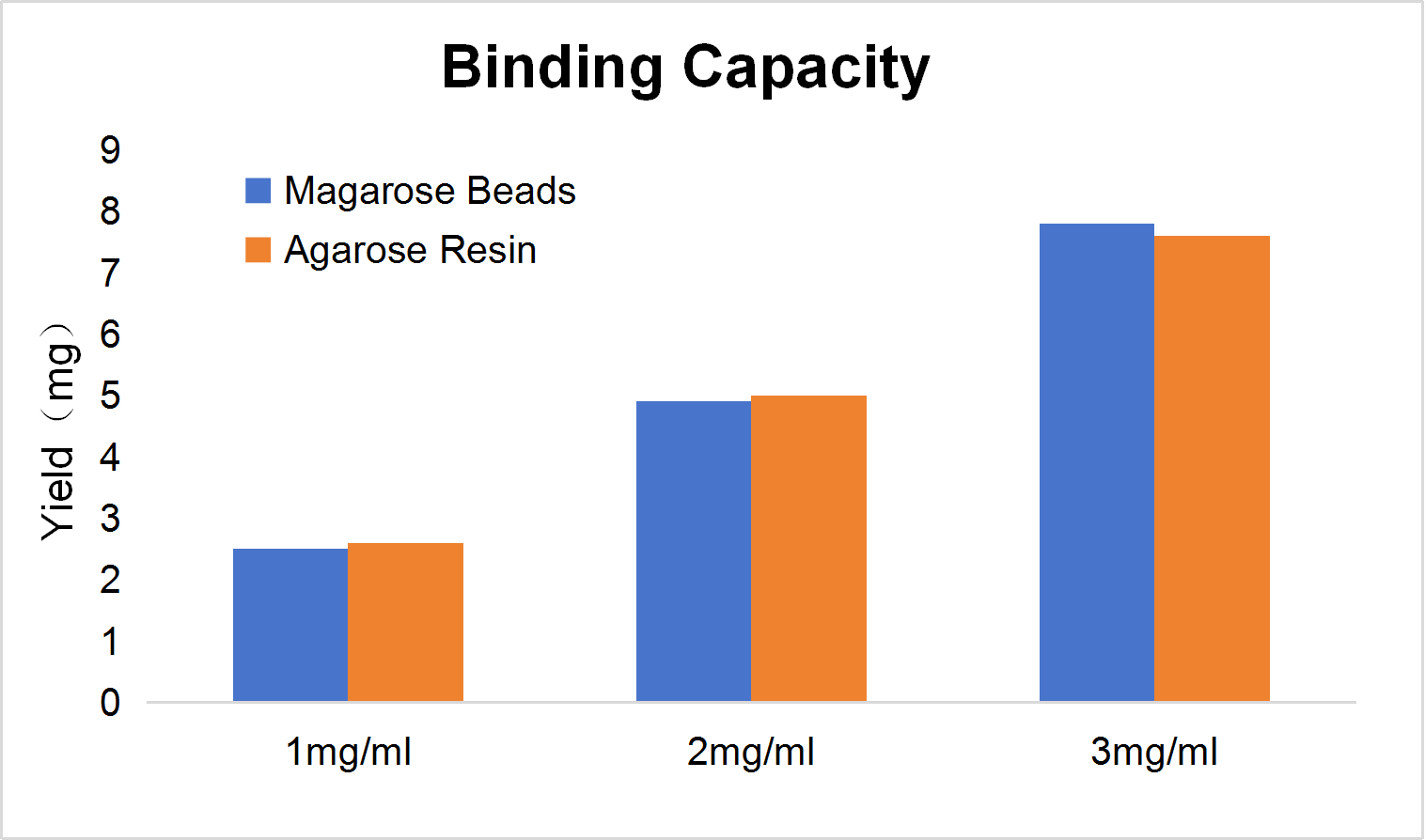

Figure 1.1 Results of binding capacity

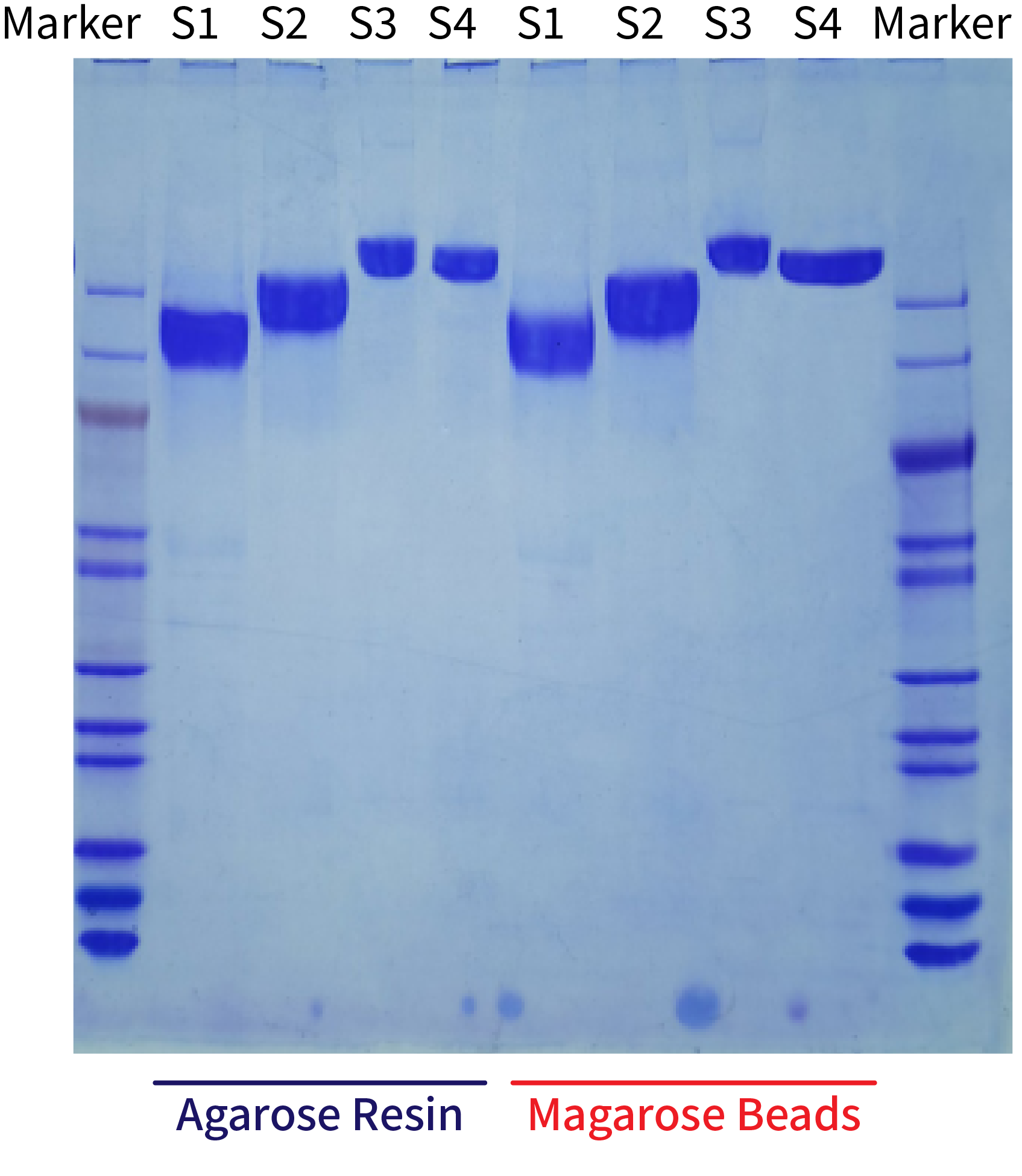

Figure 1.2 Results of binding capacity(SDS-PAGE)


2. High-throughput Application Case

Different sample types (cell culture supernatant and rabbit serum) were incubated with  rProtein A/G MagPoly Beads(Cat:SM01510) for automated purification on the Purifier 24(Cat:P241001). For the cell culture supernatant, parallel experiments were conducted with varying concentrations and volumes. The purity and recovery yield of the purified products were both ≥90%(Table 1, Figure 2).

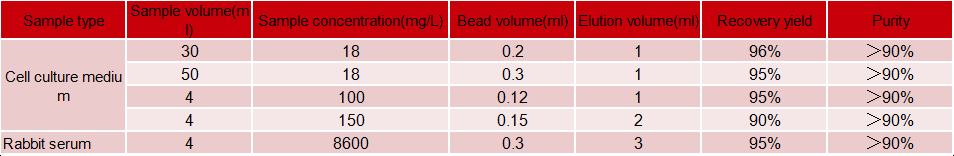

Table 1 Results of Recovery yield and Purity



Cell culture medium(30ml)


Cell culture medium(50ml)


Cell culture medium(4ml)


Rabbit serum(4ml)

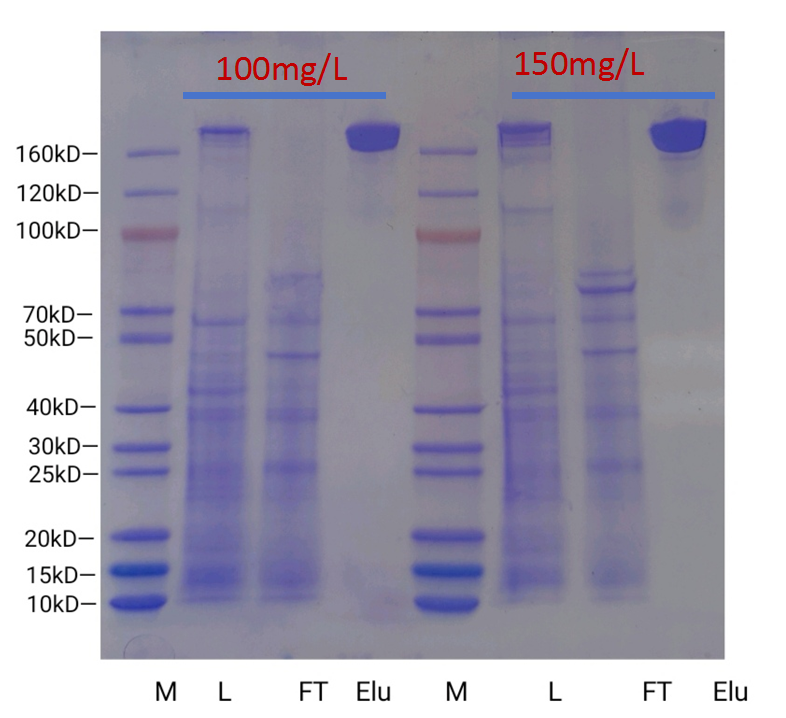

Figure 2 Results of Purity( SDS-PAGE)

· Ordering Information
Product NameCatalog NumberProduct Descriptions
rProtein A/G MagPoly BeadsMP1001Antibody purification
IP/Co-IP
rProtein A MagPoly BeadsMP0801
rProtein G MagPoly BeadsMP0901
rProtein A/G Magarose BeadsSM005005Antibody purification
rProtein A Magarose BeadsSM003005
rProtein G Magarose BeadsSM004005
SA Magarose BeadsMA0501Biotin-labeled proteins/antibodies/peptide,etc.
Streptavidin Magpoly BeadsMP0404
LCA Magarose BeadsMA0601Glycoprotein purification
ConA Magarose BeadsMA0701
Endotoxin removal beadsMP5701Endotoxin removal
Magneti-G Exosome Affinity BeadsMP5001Exosome purification
Magneti-Q Anti-Myc BeadsMA0101Flag-tag protein purification
Magneti-Q Anti-DYKDDDDK BeadsMA0201
Magneti-Q Anti-His BeadsMA0301
Magneti-Q Anti-HA BeadsMA0401
Magneti-Q Anti-V5 BeadsMA0601
Magneti-G Anti-DYKDDDDK BeadsMP5101
Ni IDA Magarose BeadsSM001005
Ni NTA Magarose BeadsSM008005
Ni Smart Magarose BeadsSM025005
Glutathione Magarose BeadsSM002005
Dextrin Magarose BeadsSM035005
STarm Magarose BeadsSM060005
NHS Activated Magarose BeadsSM031005Protein purification
NHS-Activated MagPoly BeadsMP0701
Magneti-G Anti-His BeadsMP5201IP/Co-IP
Magneti-G Anti-Myc BeadsMP5301
Magneti-G Anti-HA BeadsMP5401
Magneti-G Anti-GFP BeadsMP5501
Magneti-G Anti-RFP BeadsMP5601
Magneti-G Anti-Strep-tag II BeadsMP6001
